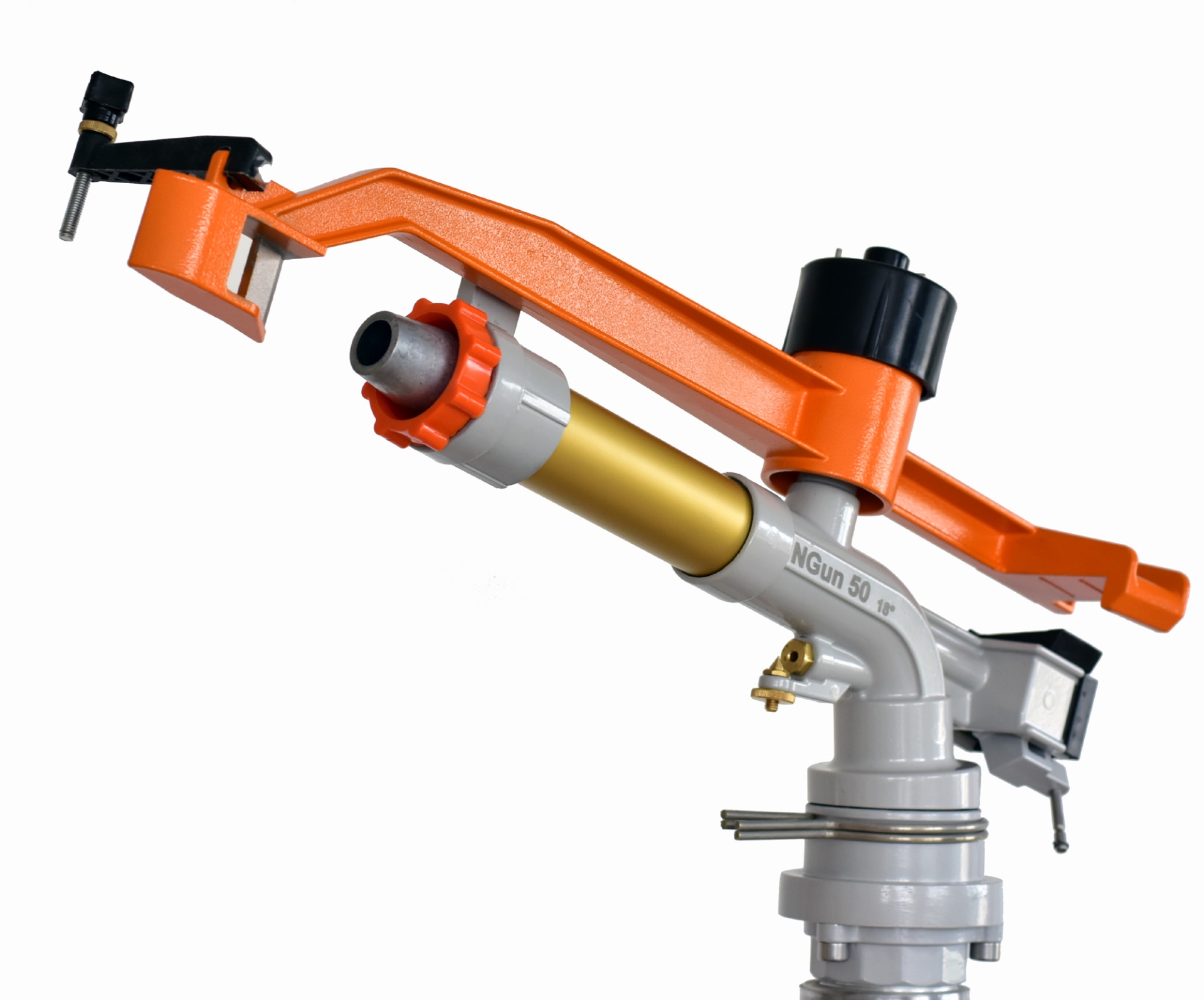

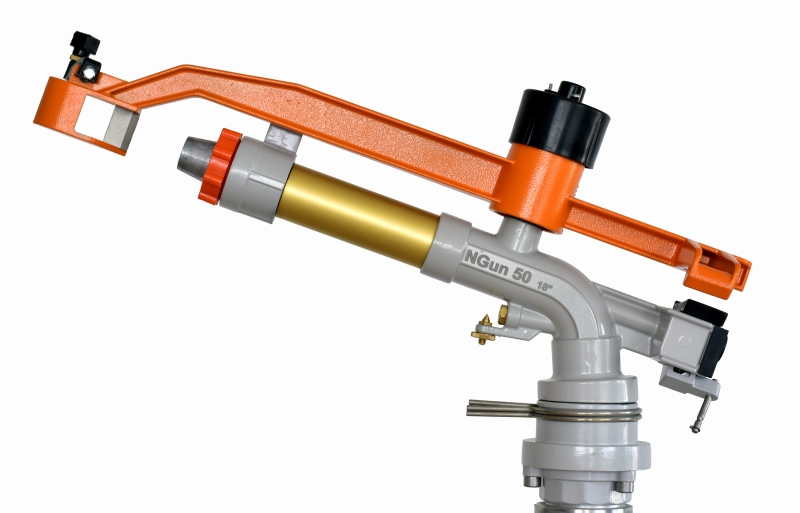

It is used as ENDGUN in pivot irrigation machines. It is a impact type Endgun Model, it can also work with waste water thanks to the segmented aluminum nozzle on it.
Because of our special design and experiences Against swing arm models it’s very economical solution.
Thanks to its 18° body angle, it is fully compatible with portable or fixed systems in windy areas and where you need to irrigate at low altitudes. It has aluminum nozzles.
Range of Usable Nozzle Diameter
14 mm – 24 mm
Range of water consumption
10 m3/h – 45 m3/h
Range of Shooting
20meter– 36meter
Body Angle
18°
***Performance data were obtained under ideal test conditions and may be adversely affected by wind and other factors. Pressure refers to the pressure in the breast. Wind speed tested at zero.
